Descrição completa
Efficiency and power factor approved by INMETRO as Interministerial
Ordinance No 290 from July 7th, 2021.
Usage:
Three-phase motor with inverter is applied in systems that need speed
variation or placement control throughout the use of frequency, vector or scalar
control inverter, such as: machine tools, conveyors, food and furniture industry,
blower fan, mixer tanks, machining centers, elevators, sugar centrifuges, cranes,
overhead cranes, industrial washers and more.
Features:

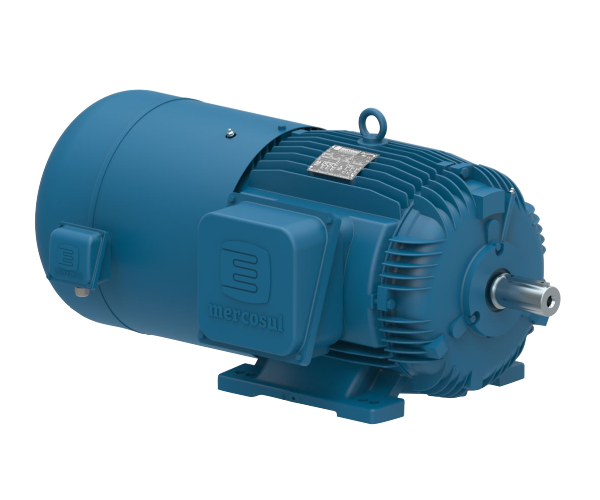

Three-phase Squirrel Cage Induction Motor
Totally enclosed fan cooled (TEFC)
Engine casing: 56 to 355
Power:1/12 to 500hp
Frequency: variable (activated by inverter)
Category: N
Polarity: 2, 4, 6 or 8 poles
Insulation class: F (155°C) or H (180°C)
Voltage: 220/380; 380/660; 220/440; 440; 440/760 or 220/380/440/760 V
Measures: according to ABNT NBR 15623
Independent fan (optional)
