Product Features
Efficiency and power factor approved by INMETRO in
accordance with Interministerial Ordinance No 290,
dated July 7, 2021.
Usage:
Economical, robust and versatile, with low energy consumption.
Suitable for a wide range of applications, including machine tools,
lathes, grinding machines, milling machines, drills, threading machines,
mandrel machines, planers, agricultural machinery, chemical and
petrochemical industries, mineral and plant extraction, textile,
pulp and paper, food processing, steel, sugar mills, distilleries,
mechanical industries, and more.
Features:
Three-phase squirrel-cage induction motor
Totally enclosed fan cooled (TEFC)
Frame size: 56 to 355
Power: 1/12 to 500hp
Frequency: 60Hz
Design: N
Number of poles: 2, 4, 6 or 8
Insulation class: F (155°C) or H (180°C)
Voltage: 220/380; 380/660; 220/440; 440; 440/760 or 220/380/440/760 V
Dimensions: according to ABNT NBR 15623
More details availabe upon request.

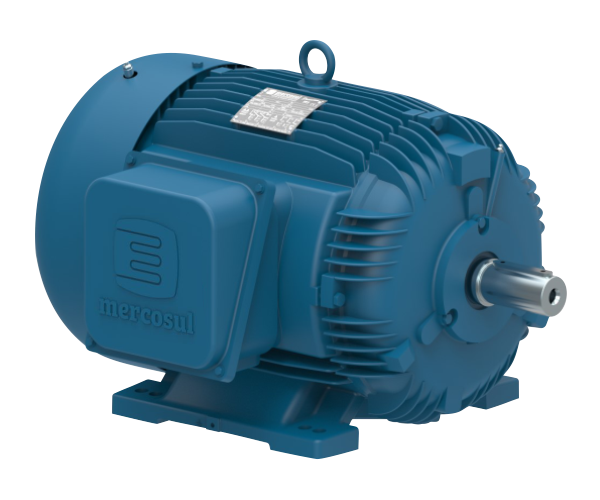

Foot-mounted motor
Optimized design: maximum heat dissipation, low noise and vibration levels.
